Clipping

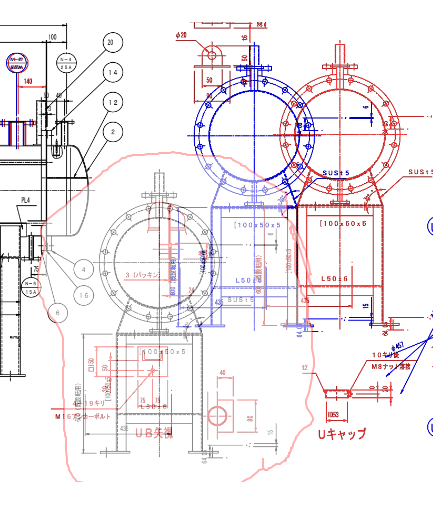

If the layout of the loaded data has changed or the number of lines in text or lists is different, as shown in the figure below, you can move the comparison target while clipping it according to your intuition

Button descriptions

Rectangular clipping

Clip any location with a rectangle

Lasso clipping

Clip any location freehand

Adsorption function when arranging parts

Automatically moves clipped parts to similar locations

Right click menu

Clip

Retain the clipped parts for use on another page

Reset

Put the cut-out part back in its original place

Delete

Delete the clipped parts from the page

Paste

Paste the cut-out part onto the currently displayed page

Clip operation

1. Click on the Rectangular clipping or Lasso clipping button to start the clipping process



2. You can drag and select any area on the page to clip the image

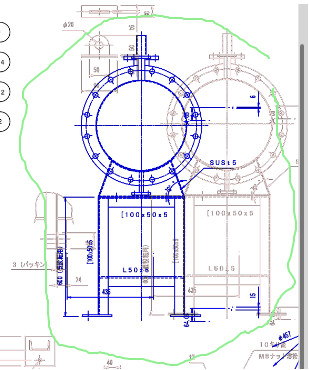

   For lasso clipping, you can cut out parts by drawing a freehand outline around them


3. Click to select the clipped part and drag to move it freely

   Parts can also be moved up, down, left, or right by using the arrow keys or Ctrl+arrow keys
   If "Adsorption function when arranging parts" is ON, the parts are automatically moved to overlap with similar parts


4. Click the "Confirm" button to finish the clipping operation
