Page preview

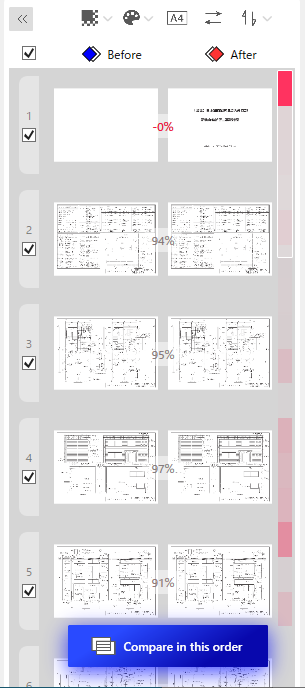

Thumbnails List

Start comparing data

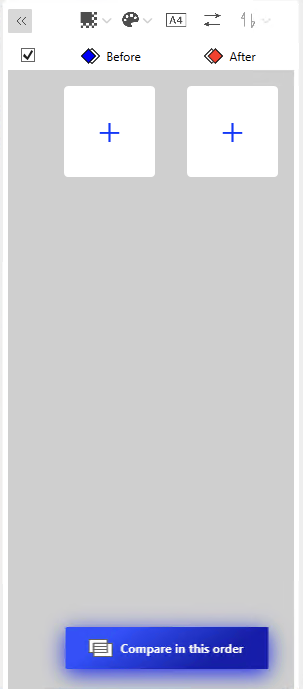

Loading Files

File loading can be done by clicking on the "+" button or by dragging and dropping the file onto the thumbnail list

Button descriptions

Change resolution

Change the loading resolution

Resolution setting for new loadingwill also be changed in Various settings

Color settings

You can specify the color or grayscale setting when loading, as well as the display color when comparing pages

Paper size display

Displays the size of the Load image(ISO standard such as A3, A2, or horizontal x vertical pixel display)

Column replacement

Change the position of the right and left data

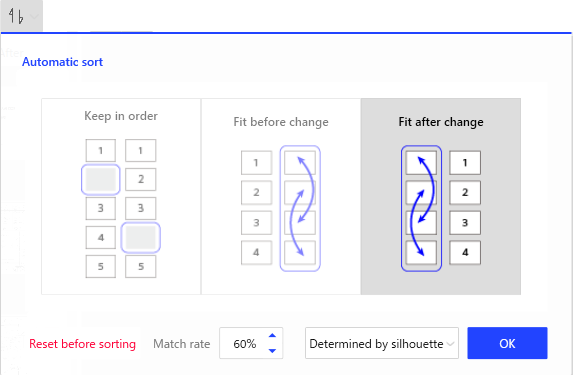

Automatic sort

Rearranges the pages before and after the change according to their matching rate

Reset before sorting

Reset before auto sorting state

Match rate

You can specify the minimam matching rate for determining if it is the same page

The number displayed between "Before" and "After" is the match rate in the "Determined by element" mode

Determination mode

You can specify the mode used for auto sorting

Determined by silhouette

This is a mode for judging based on the overall composition

It is not suitable when there are many pages with similar silhouettes or when there are many rotations and misalignments in the content

Determined by element

This is a mode for judging based on data content

If the paper sizes do not match, matching rate will be significantly lower. Please use a lower match rate

Right click menu

You can right-click on any page to display a menu and perform various additional operations

Duplicate

Copy a same selected image below the selected image

Continue to duplicate

Copy multiple selected images below the selected image

Add a blank on top

Add blank image above the selected image

Add a blank below

Add blank image below the selected image

Rotation

Rotate the selected page 90 degrees clockwise

Matching search

Matching search

Delete

Delete selected image

Batch processing

Right-click on the header portion of the list of thumbnails (before and after changes) to display the following menu

Rotation

Rotate all pages in the selected column 90 degrees clockwise

Delete all

Delete all pages in the selected column at once

preview display

Check the loaded data

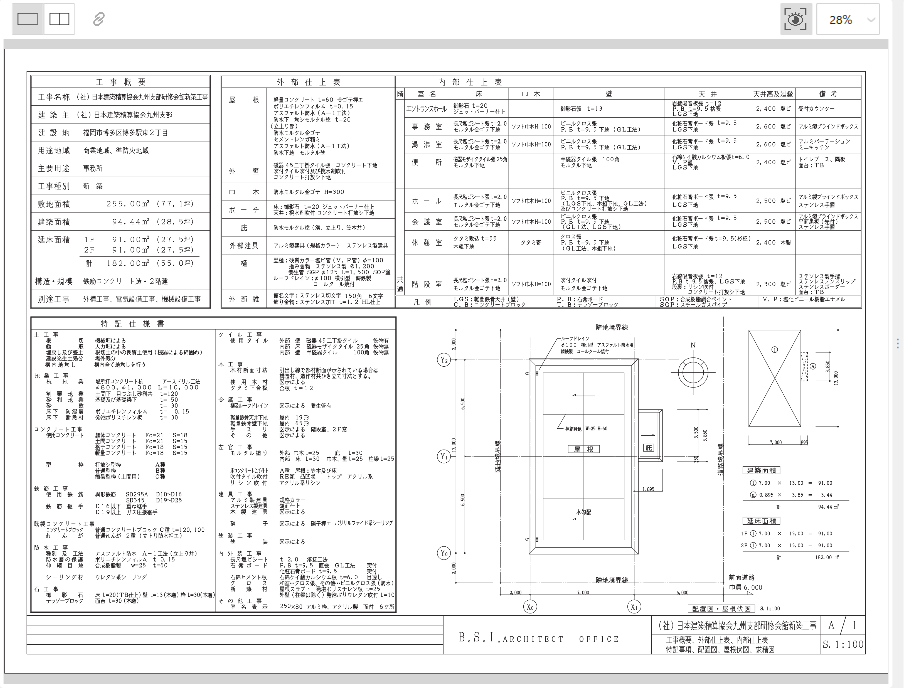

• Single-page preview

  You can view the selected page in the thumbnail list while zooming in, zooming out, and moving it

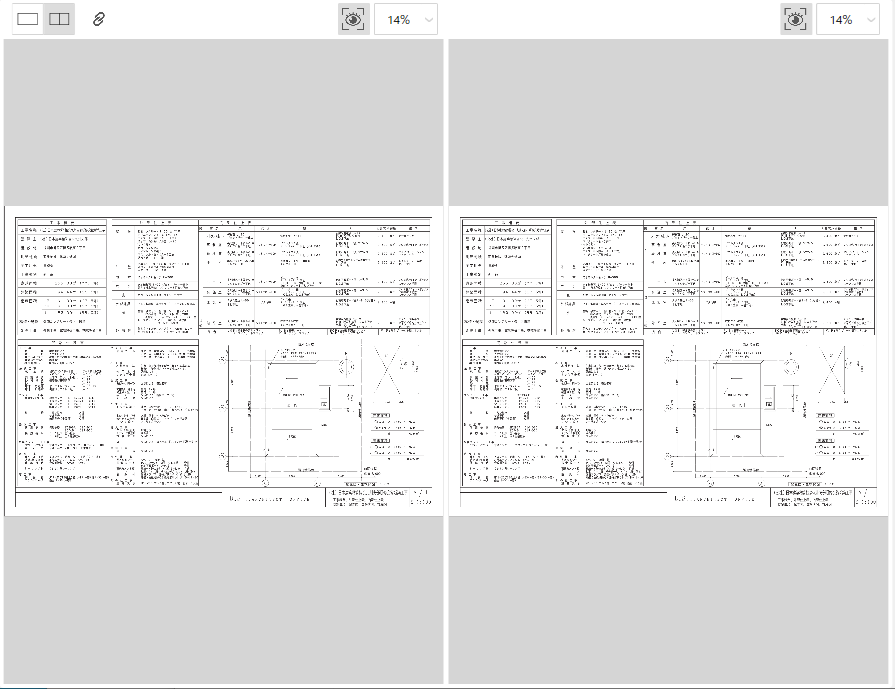

• Double-page preview

  You can zoom in, zoom out, and move the selected before/after pages in the thumbnail list to check them in detail

  You can also link the zooming, scaling, and moving operations between the before and after pages in the thumbnail list



Button descriptions

Display switching

Switch between single-page preview or double-page preview

Operation Link

Toggles between operating two pages at the same time when two pages are displayed

Fit display

Fit display to screen

Display Magnification

Select the page magnification

Right click menu

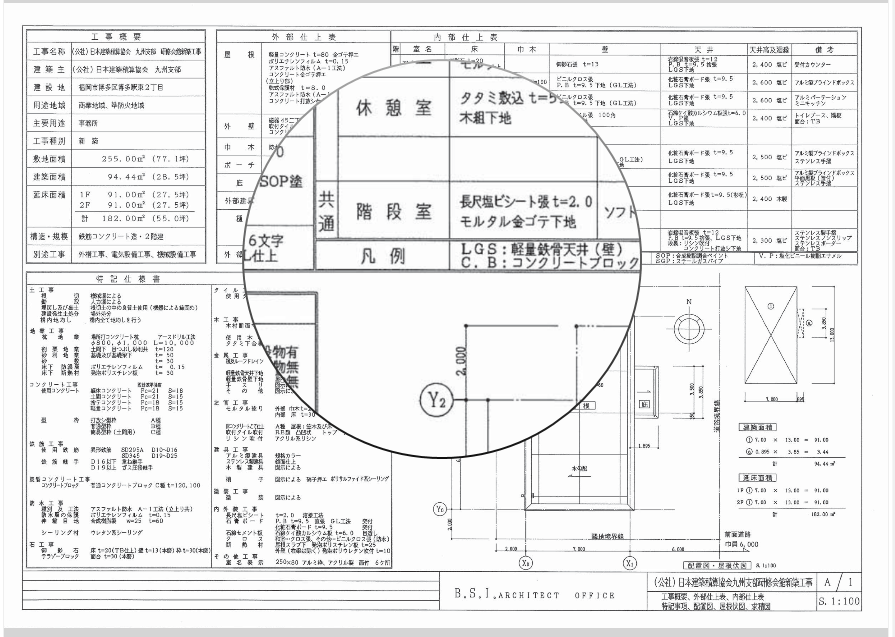

You can zoom in on the area around the cursor by left-clicking anywhere on the displayed page
